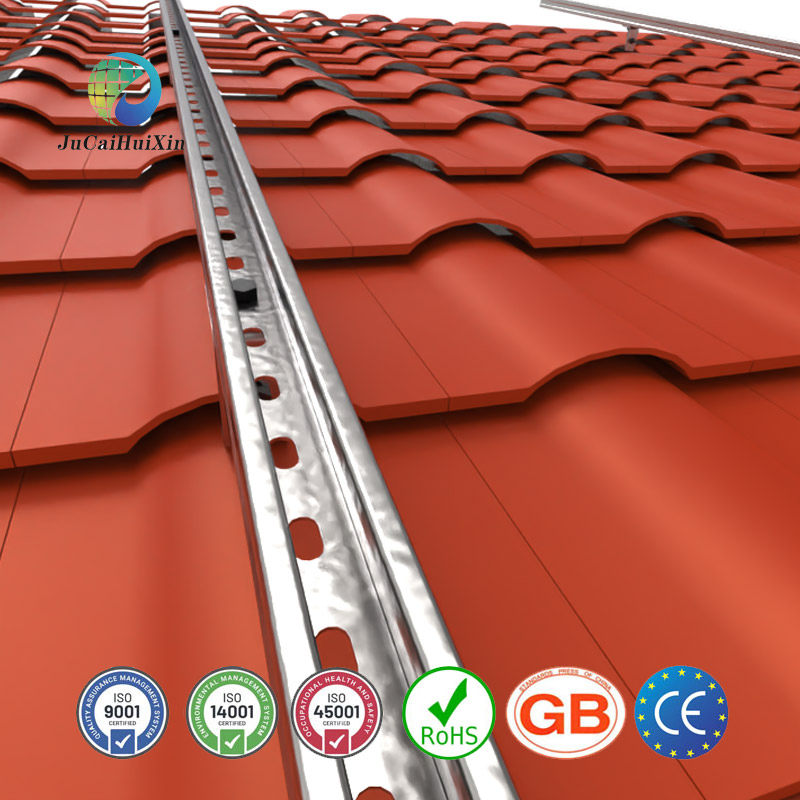

Lightweight Aluminum Alloy Solar Bracket for Tile Roofs Quick-Install, Weather-Resistant & Durable

1 / 5

Lightweight Aluminum Alloy Solar Bracket for Tile Roofs Quick-Install, Weather-Resistant & Durable

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	Roof bracket-025
Certification	GB, ISO, CE, RoHS
Application	Home
Material	Aluminum Alloy
Type	Roof Bracket
Coating	Zinc Aluminum Magnesium Coating
Molding Process	Rolling and Forming of Zinc Aluminum Magnesium Str
Production Capacity	100000 Tons / Year

Product Description

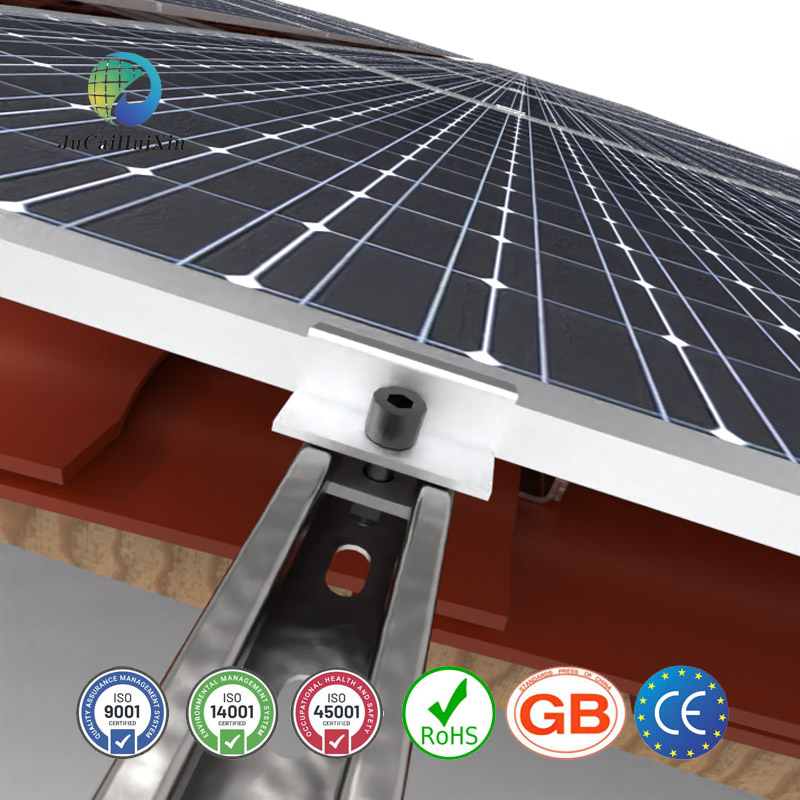

Lightweight Aluminum Alloy Solar Bracket for Tile Roofs | Quick-Install, Weather-Resistant & Durable

An innovative solar panel installation solution designed specifically for tile roofs, using high-strength 6063-T5 aluminum alloy material and combined with quick installation buckle technology to achieve zero drilling and zero damage roof adaptation. This product supports mainstream solar panel models and is suitable for residential, commercial, and industrial scenarios. It provides up to 25 years of corrosion resistance and structural stability assurance.

Material	aluminum alloy/Stainless steel
NO.of Panel	2-10 Piece or Custom
Max. wind speed	24 m/s (running) / 40 m/s (fat)
Rust protection	Anodic oxidation
PV tilt angles	Within 15 to 45º
Application scenarios	Roof
Service life	30 Year

Core Highlights

✔

Quick installation: Modular design, one person can complete the installation in 2 hours.

✔

Non destructive roof: No drilling fixture compatible with various tile types (flat, corrugated, Spanish).

✔

Military grade durability: Anodized treatment, certified for 2000 hours of salt spray resistance.

✔

Intelligent adjustment: Adjustable tilt angle of 15°~60°, maximizing light absorption.

Product Advantages

1. Super Durability
Material: Aviation grade aluminum alloy (6063-T5+T6 heat treated), with a 40% increase in strength and a 30% reduction in weight. Suitable for harsh environments such as coastal areas and high humidity. Anti-extreme weather: wind resistance level 62m/s.

2. Minimalist Installation Design
Pre-assembly module: 75% of components are pre-installed in the factory. Elastic pressure gasket compensates for ± 10mm tile height difference, eliminating the risk of water leakage.

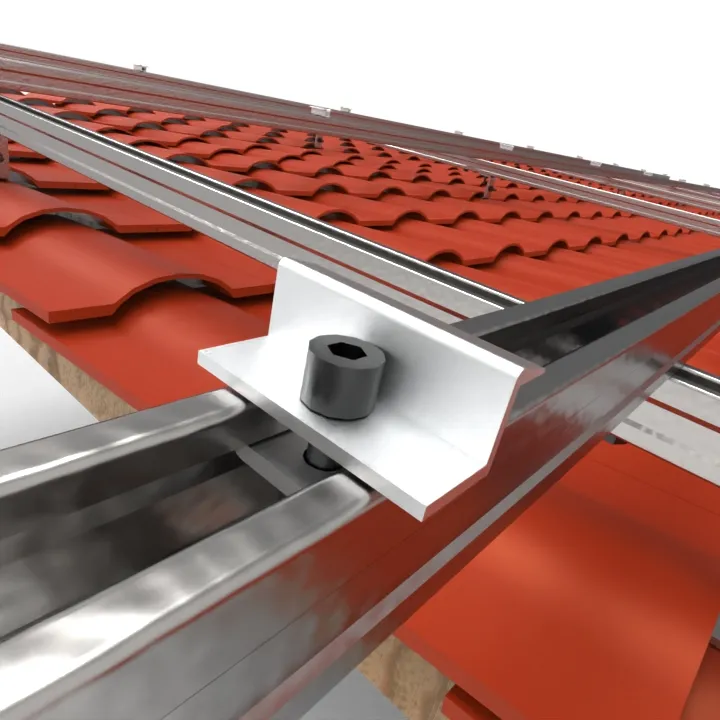

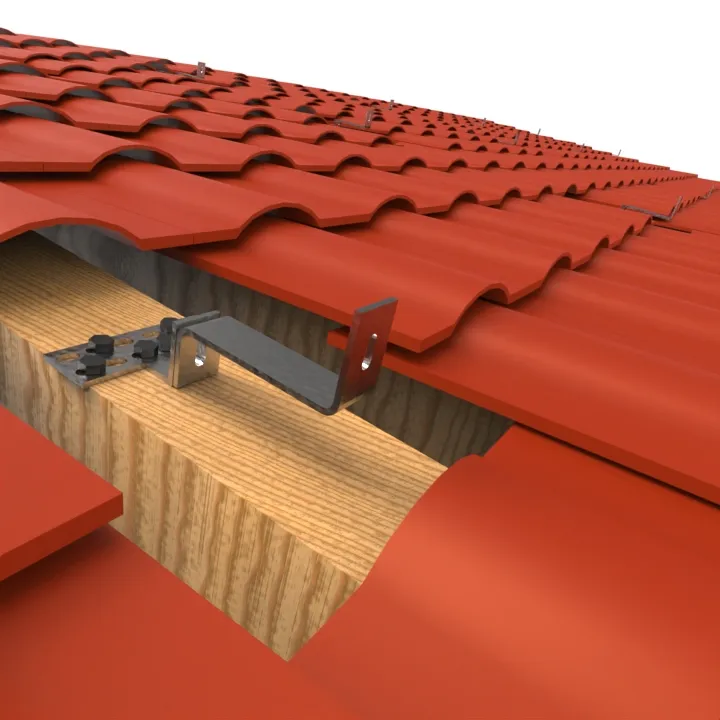

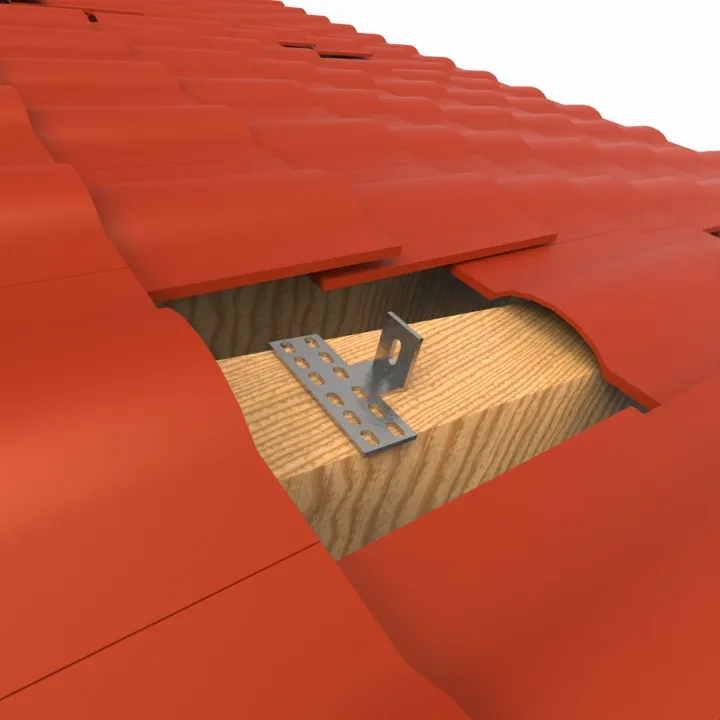

Installation & Maintenance

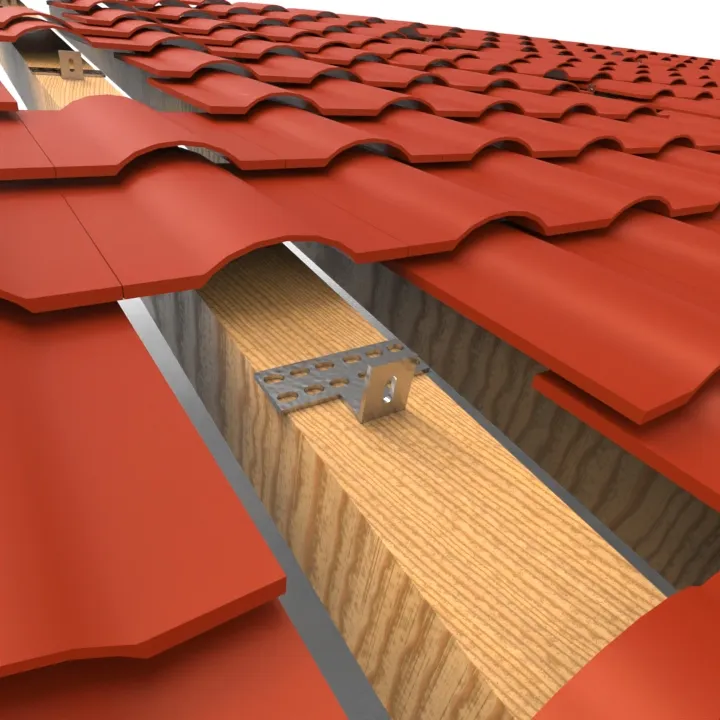

Step 1: Positioning - Use a ruler to determine the reference line.

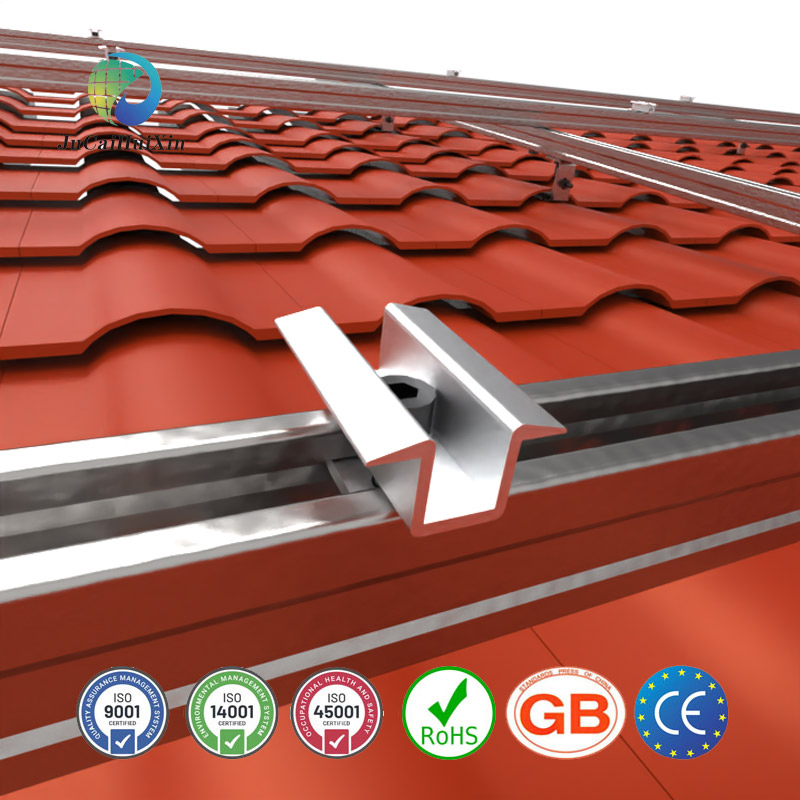

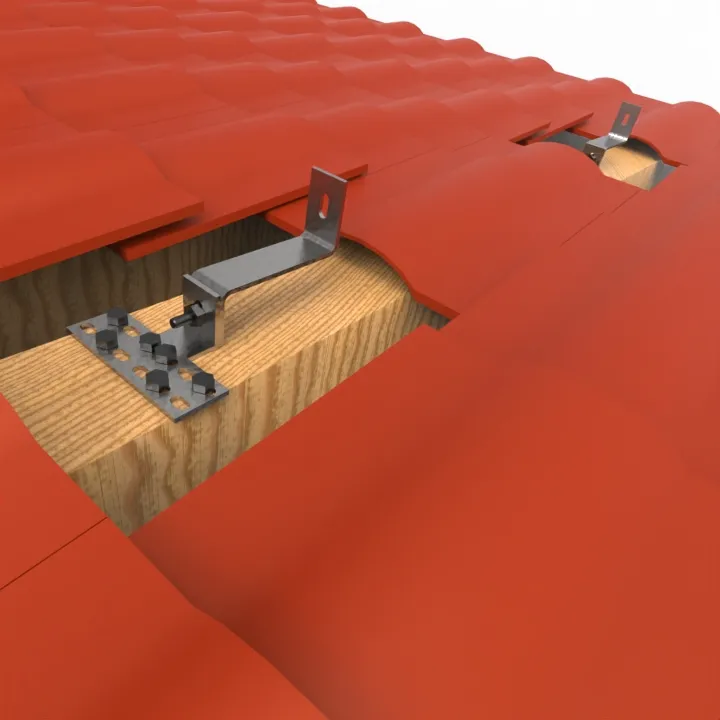

Step 2: Fixed Fixture - Snap on fixture locks the edge of the tile (no drilling required).

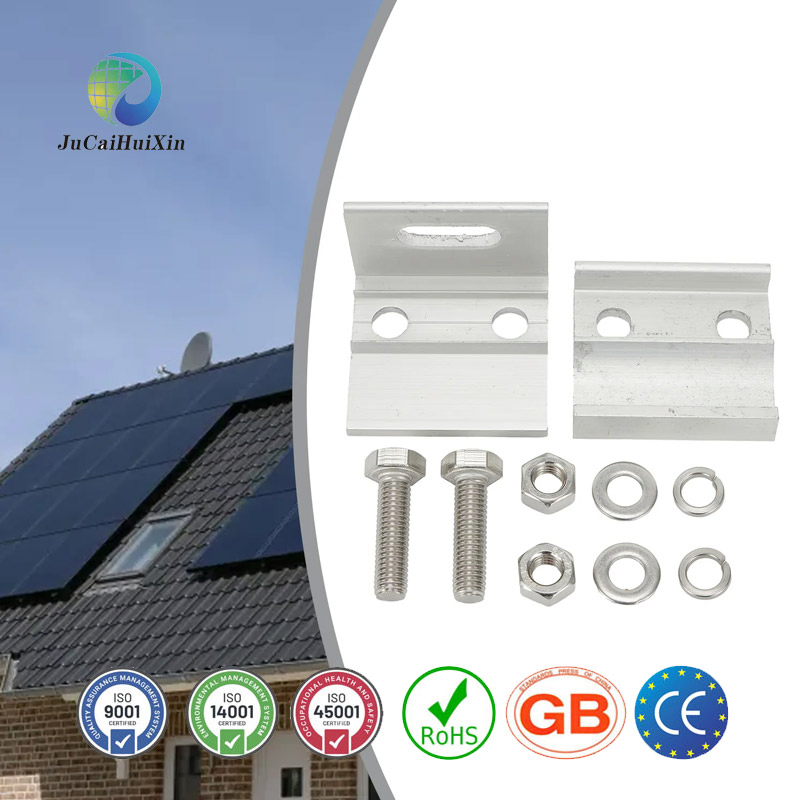

Step 3: Assembly Bracket - Bolted connection pre-installed guide rail.

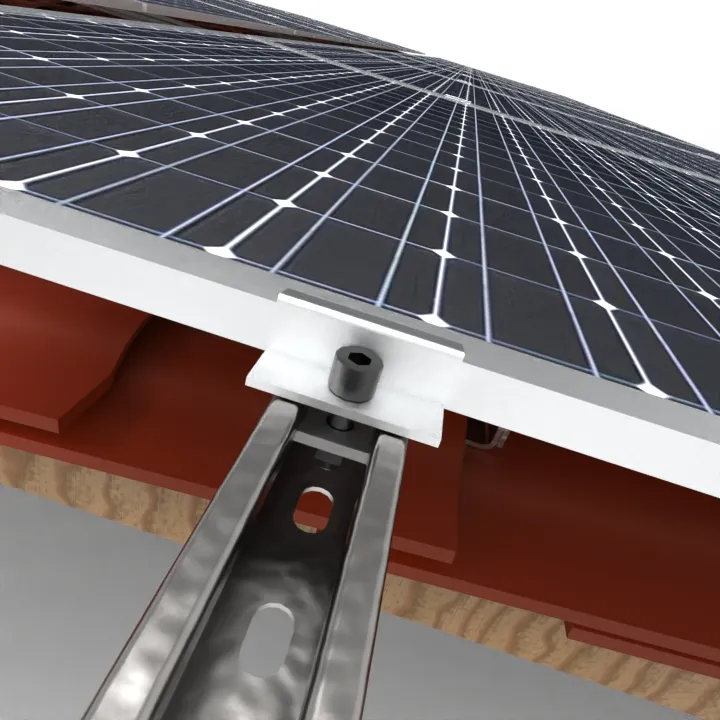

Step 4: PV Panels - Universal interface compatible with mainstream brands.

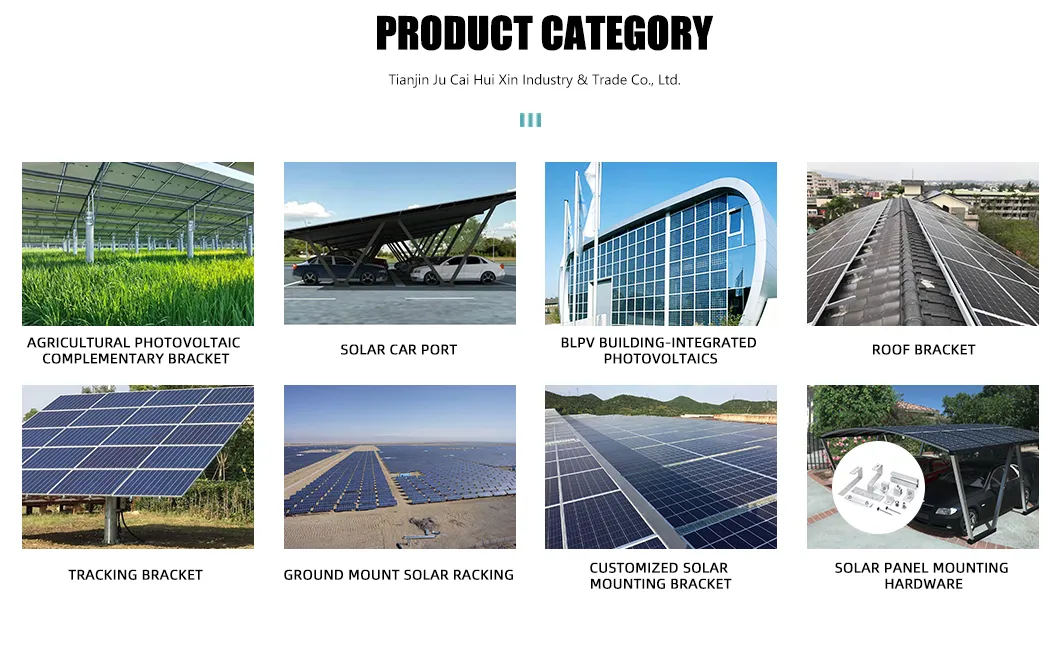

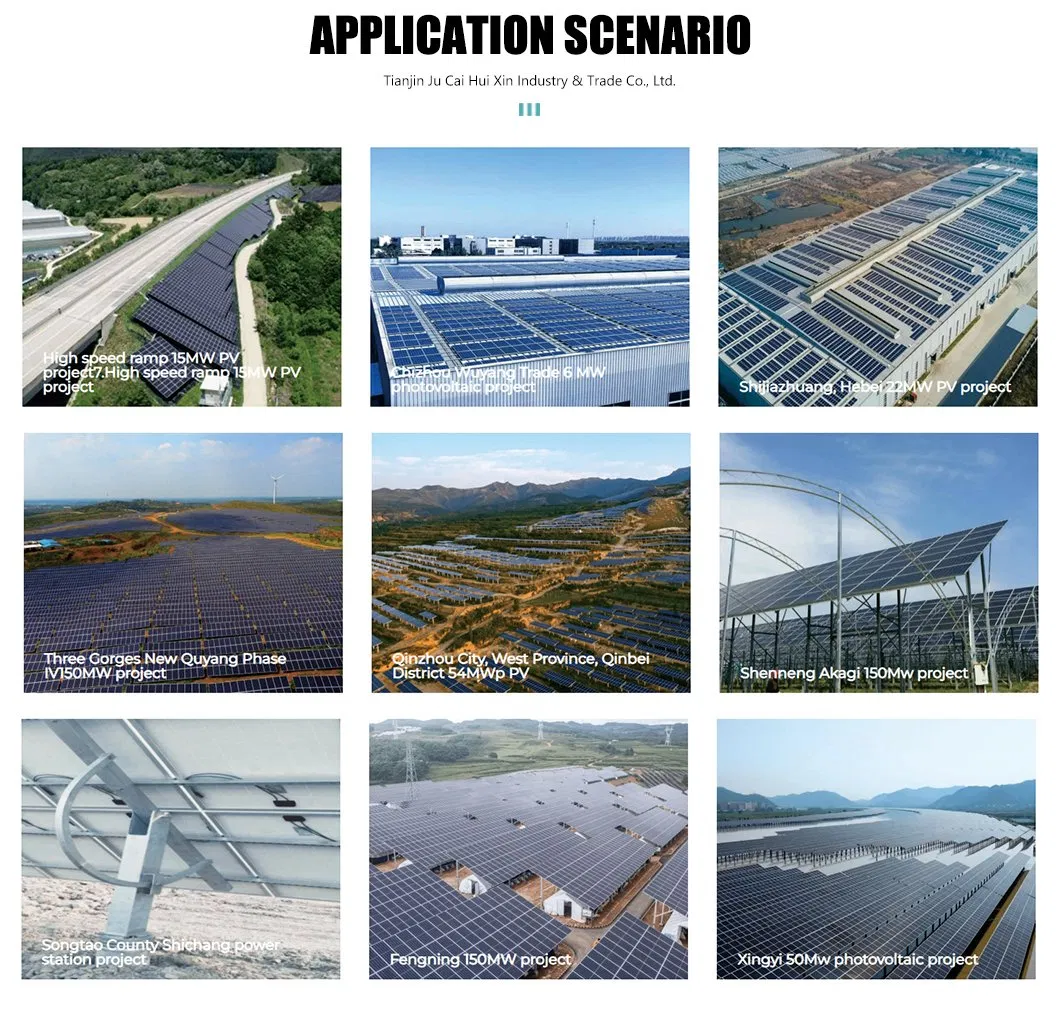

Application Scenarios

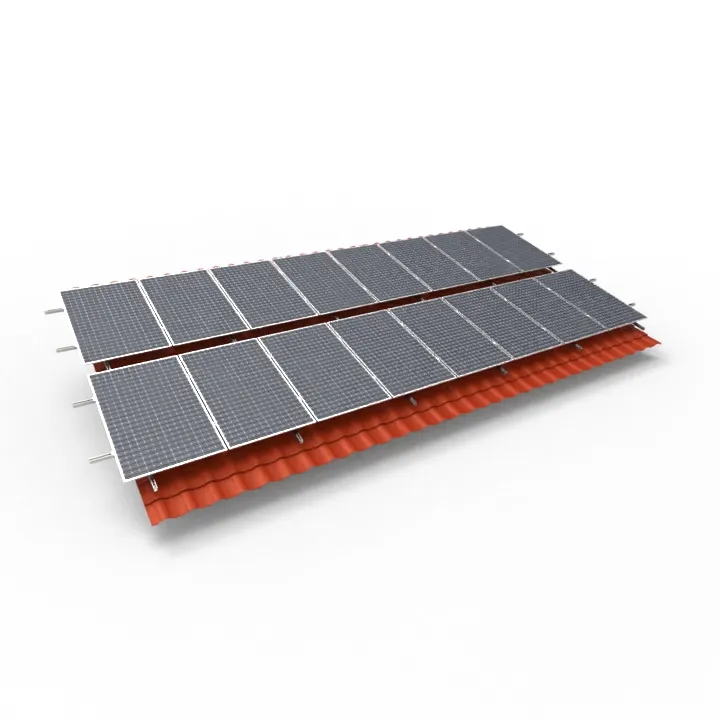

Residential & Commercial Roofs

Industrial & Rural Energy Projects

Packaging & Shipping

Frequently Asked Questions

Q1: Do you need professional installers?

A: Designed as DIY friendly, providing AR installation guidance videos and 24-hour technical support, ordinary users can complete it independently.

Q2: Can old tile roofs be used?

A: The fixture is suitable for aging roofs, and the elastic gasket can compensate for uneven tiles (± 10mm tolerance). Before installation, it is necessary to ensure that the roof structure is stable.

Q3: Is typhoon weather safe?

A: Passed wind resistance certification (62m/s), comes standard with anti loosening nuts and reinforced base, and the system includes 1.5 times safety redundancy design.

Q4: Warranty and after-sales policy?

A: We provide a 25 year material warranty, with replacement parts within 72 hours of damage, and a free structural load-bearing calculation report.

Q5: Can it adapt to irregular tiles?

A: Support customized fixtures (tile samples are required), with an additional customization cycle of 7-10 working days.

Q6: What is the theoretical service life of the bracket?

A: The high-strength aluminum alloy and anodic oxidation treatment provide a theoretical service life of approximately 30 years.
